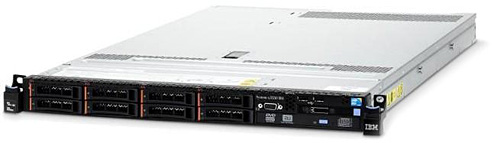

IBM X3550M4 (7914)
| 整機信息 | |
| 名稱 | IBM System x3550 M4 |
| 型號 | 7914 |
| 品牌 | IBM |
| 類型 | PC服務器 |
| CPU信息 | 多達 2 個 8 核英特爾至強 E5-2600 系列處理器 |
| CPU類型 | 8 核英特爾至強 E5-2600 系列 |
| CPU插槽數 | 2 |
| CPU激活 | 不需要激活 |
| 機架類型 | 機架式 |
| 機架空間 | 1U |
| 硬盤信息 | 多達 8TB（2.5" 型號）或 9TB（3.5" 型號）SAS/SATA |
| 最大硬盤數量 | 8 個 2.5" 或 3 個 3.5" 硬盤驅動器 (HDD) |
| 內存提示 | UDIMM/RDIMM/LRDIMM |
| 支持內存容量范圍 | 高達 768GB |
| 內存插槽數量 | 24 |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 冗余 550W AC、750W AC 或 750W DC |
| 單機電源數量 | 2 |
| 介質托架 | 2.5" 型號具有一個可選的 DVD 托架 |
| 適配器插槽 | 2 個 PCIe 3.0 插槽、1 個可選 PCI-X |
| 端口 | 網絡接口 4 x 1GbE（標配），2 x 10GbE 嵌入式適配器（無插槽可選件）/可信平臺模塊；USB 端口：前端 2 個（3.5" 型號有 3 個）/后端 4 個/內部 1 個；VGA 端口：前端 1 個/后端 1 個 |
| 發布日期 | |
| 下架日期 | |
| 服務截止期 | |
| 操作系統 | Microsoft Windows Server、Red Hat Enterprise Linux、SUSE Linux Enterprise Server、VMware vSphere |
| 產品尺寸 | |
| 產品重量 |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| CPU | ||
| A1LG | 81Y7359 | Intel Xeon Processor E5-2603 4C 1.8GHz 10MB Cache 1066MHz 80W |
| A1LJ | 81Y7361 | Intel Xeon Processor E5-2609 4C 2.4GHz 10MB Cache 1066MHz 80W |
| A1LK | 81Y7362 | Intel Xeon Processor E5-2620 6C 2.0GHz 15MB Cache 1333MHz 95W |
| A1LL | 81Y7363 | Intel Xeon Processor E5-2630 6C 2.3GHz 15MB Cache 1333MHz 95W |
| A1LM | 81Y7364 | Intel Xeon Processor E5-2640 6C 2.5GHz 15MB Cache 1333MHz 95W |
| A1LN | 81Y7365 | Intel Xeon Processor E5-2650 8C 2.0GHz 20MB Cache 1600MHz 95W |
| A1LP | 81Y7366 | Intel Xeon Processor E5-2660 8C 2.2GHz 20MB Cache 1600MHz 95W |
| A1LQ | 81Y7367 | Intel Xeon Processor E5-2680 8C 2.7GHz 20MB Cache 1600MHz 130W |
| A1LR | 81Y7368 | Intel Xeon Processor E5-2667 6C 2.9GHz 15MB Cache 1600MHz 130W |
| A1LS | 81Y7369 | Intel Xeon Processor E5-2650L 8C 1.8GHz 20MB Cache 1600MHz 70W |
| A1LT | 81Y7370 | Addl Intel Xeon Processor E5-2603 4C 1.8GHz 10MB 80W |
| A1LV | 81Y7372 | Addl Intel Xeon Processor E5-2609 4C 2.4GHz 10MB 80W |
| A1LW | 81Y7373 | Addl Intel Xeon Processor E5-2620 6C 2.0GHz 15MB 95W |
| A1LX | 81Y7374 | Addl Intel Xeon Processor E5-2630 6C 2.3GHz 15MB 95W |
| A1LY | 81Y7375 | Addl Intel Xeon Processor E5-2640 6C 2.5GHz 15MB 95W |
| A1LZ | 81Y7376 | Addl Intel Xeon Processor E5-2650 8C 2.0GHz 20MB 95W |
| A1M0 | 81Y7377 | Addl Intel Xeon Processor E5-2660 8C 2.2GHz 20MB 95W |
| A1M1 | 81Y7378 | Addl Intel Xeon Processor E5-2680 8C 2.7GHz 20MB 130W |
| A1M2 | 81Y7379 | Addl Intel Xeon Processor E5-2667 6C 2.9GHz 15MB 130W |
| A1M3 | 81Y7380 | Addl Intel Xeon Processor E5-2650L 8C 1.8GHz 20MB 70W |
| A2B2 | 94Y7454 | Intel Xeon Processor E5-2670 8C 2.6GHz 20MB Cache 1600MHz 115W |
| A2B3 | 94Y7455 | Intel Xeon Processor E5-2630L 6C 2.0GHz 15MB Cache 1333MHz 60W |
| A2B4 | 94Y7456 | Intel Xeon Processor E5-2643 4C 3.3GHz 10MB Cache 1600MHz 130W |
| A2B5 | 94Y7457 | Addl Intel Xeon Processor E5-2670 8C 2.6GHz 20MB 115W |
| A2B6 | 94Y7458 | Addl Intel Xeon Processor E5-2630L 6C 2.0GHz 15MB 60W |
| A2B7 | 94Y7459 | Addl Intel Xeon Processor E5-2643 4C 3.3GHz 10MB 130W |
| A2GN | 94Y7538 | Intel Xeon Processor E5-2665 8C 2.4GHz 20MB Cache 1600MHz 115W |
| A2GP | 94Y7541 | Addl Intel Xeon Processor E5-2665 8C 2.4GHz 20MB 115W |
| A2QJ | 94Y7539 | Addl Intel Xeon Processor E5-2690 8C 2.9GHz 20MB 1600MHz 135W |
| A2QK | 94Y7540 | Addl Intel Xeon Processor E5-2637 2C 3.0GHz 5MB 1600MHz 80W |
| A2VQ | 94Y7536 | Intel Xeon Processor E5-2690 8C 2.9GHz 20MB Cache 1600MHz 135W |
| A2VR | 94Y7537 | Intel Xeon Processor E5-2637 2C 3.0GHz 5MB Cache 1600MHz 80W |
| 內存 | ||
| 8648 |
49Y1386 49Y1404 |
4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| 8923 |
49Y1379 49Y1397 |
8GB (1x8GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8940 |
49Y1387 49Y1405 |
2GB (1x2GB, 1Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8941 |
49Y1388 49Y1406 |
4GB (1x4GB, 1Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8942 |
49Y1389 49Y1407 |
4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| A14E |
49Y1381 49Y1399 |
8GB (1x8GB, 4Rx8, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| A1J3 |
81Y4484 81Y4486 |
ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade for IBM System x |
| A1J4 |
81Y4487 90Y4301 |
ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade for IBM System x |
| A1QT |
49Y1562 49Y1563 |
16GB (1x16GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| A1WY |
81Y4559 90Y4302 |
ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade for IBM System x |
| A24L |
90Y3177 90Y3178 |
4GB (1x4GB, 2Rx8, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM |
| A28Z |
49Y1558 49Y1559 |
4GB (1x4GB, 1Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM |
| A292 |
90Y3108 90Y3109 |
8GB (1x8GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM |
| 硬盤 | ||
| A1NX |
81Y9724 81Y9722 |
IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| A1NZ |
81Y9728 81Y9726 |
IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| A22P |
81Y9792 81Y9790 |
IBM 1TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD |
| A22S |
81Y9800 81Y9798 |
IBM 3TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD |
| A22V |
81Y9816 81Y9814 |
IBM 3TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD |
| A22X |
81Y9808 81Y9806 |
IBM 1TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD |
| A282 |
81Y9652 81Y9650 |
IBM 900GB 10K 6Gbps SAS 2.5" SFF HS HDD |
| A283 |
81Y9672 81Y9670 |
IBM 300GB 15K 6Gbps SAS 2.5" SFF HS HDD |
| A2XB |
90Y8928 90Y8926 |
IBM 146GB 15K 6Gbps SAS 2.5" SFF G2HS HDD |
| A2XC |
90Y8879 90Y8877 |
IBM 300GB 10K 6Gbps SAS 2.5" SFF G2HS HDD |
| A2XD |
90Y8874 90Y8872 |
IBM 600GB 10K 6Gbps SAS 2.5" SFF G2HS HDD |
| A2XE |
90Y8955 90Y8953 |
IBM 500GB 7.2K 6Gbps NL SAS 2.5" SFF G2HS HDD |
| RAID卡 | ||
| A1MZ | 81Y4450 | ServeRAID M1115 SAS/SATA Controller for IBM System x |
| A1WW | 81Y4483 | ServeRAID M5110 SAS/SATA Controller for IBM System x |
| 網卡 | ||
| 1485 |
39Y6071 39Y6066 |
NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 1637 |
42C1823 42C1820 42C1822 |
Brocade 10Gb CNA for IBM System x PCIe 8x |
| 2995 |
42C1783 42C1780 49Y4205 |
NetXtreme II 1000 Express Dual Port Ethernet |
| 5751 |
42C1800 42C1802 42C1803 |
QLogic 10Gb CNA for IBM System x PCI-E |
| 5763 | 59Y1887 | QLogic QLE7340 single-port 4X QDR IB x8 |
| 5766 |
49Y4223 49Y4220 |
NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 5767 |
49Y4233 49Y4230 |
Intel Ethernet Dual Port Server Adapter I340- T2 for IBM System x |
| 5768 |
49Y4243 49Y4240 |
Intel Ethernet Quad Port Server Adapter I340- T4 for IBM System x |
| A18Y |
49Y7913 49Y7910 |
Broadcom NetXtreme II Dual Port 10GBaseT Adapter for IBM System x |
| A22J | 90Y6268 | Emulex Dual Port 10GbE SFP+ Embedded VFA III for IBM System x |
| A2F6 | 95Y3450 | Mellanox ConnectX-3 VPI Single-port QSFP QDR/FDR10/10GbE HCA |
| A2F7 | 95Y3454 | Mellanox ConnectX-3 VPI Dual-port QSFP QDR/FDR10/10GbE HCA |
| A2F8 | 95Y3458 | Mellanox ConnectX-3 EN Dual-port QSFP+ 40GbE Adapter |
| A2FH | 90Y3841 | Mellanox QSA Adapter (QSFP to SFP+) |
| 適配卡 | ||
| 69 |
49Y4217 49Y4216 42C1819 |
Brocade 10Gb SFP+ SR Optical Transceiver |
| 2975 |
42C1752 42C1753 42C1750 |
PRO/1000 PF Server Adapter Half x4 PCIe by intel. |
| 5721 | 49Y8577 | IBM 10GbE SW SFP+ Transceiver |
| 5982 |
68Y7355 46M0907 |
IBM 6Gb SAS HBA |
| A13K | 43V5932 | NVIDIA Quadro 600 |
| A1DR | 90Y3505 | IBM QSFP+ SR Transceiver |
| A1HJ | 81Y6574 | x3550 M4 PCIe Riser Card 1 (1 x16 LP Slot) |
| A1HK | 81Y6575 | x3550 M4 PCIe Gen-III Riser Card 2(1 x8 FH/HL Slot) |
| A1HL | 81Y6576 | x3550 M4 PCIe Gen-III Riser Card 2(1 x16 FH/HL Slot) |
| A1HM | 81Y6577 | x3550 M4 PCIX Riser Card 2 (1 PCIX FH/HL Slot) |
| A1HN | 81Y6578 | x3550 M4 plus 4x 2.5" HDD Assembly Kit |
| A1XL |
81Y4493 81Y4492 |
ServeRAID H1110 SAS/SATA Controller for IBM System x |
| 光纖卡 | ||
| 1698 |
43W7491 42C2069 42C2070 |
Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 1699 |
43W7492 42C2071 42C2072 |
Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x |
| 3567 |
42C2179 39R6525 39R6526 |
QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 3568 |
42C2182 39R6527 39R6528 |
QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x |
| 3578 |
42D0502 42D0501 42D0507 |
QLogic 8Gb FC Single-port HBA for IBM System x |
| 3579 |
42D0511 42D0510 42D0516 |
QLogic 8Gb FC Dual-port HBA for IBM System x |
| 3580 |
42D0486 42D0485 42D0491 |
Emulex 8Gb FC Single-port HBA for IBM System x |
| 3581 |
42D0495 42D0494 42D0500 |
Emulex 8Gb FC Dual-port HBA for IBM System x |
| 3589 |
46M6051 46M6049 42D0549 42D6049 46M6061 |
Brocade 8Gb FC Single-port HBA for IBM System x |
| 3591 |
46M6052 46M6050 46M6062 |
Brocade 8Gb FC Dual-port HBA for IBM System x |
| 3885 |
59Y1988 59Y1987 59Y1992 |
Brocade 4Gb FC Single-port HBA for IBM System x |
| 3886 |
59Y1994 59Y1993 59Y1998 |
Brocade 4Gb FC Dual-port HBA for IBM System x |
| 電源 | ||
| A1H5 | 81Y6562 | IBM System x 750W High Efficiency Platinum AC Power Supply |
| A1H6 | 81Y6563 | IBM System x 550W High Efficiency Platinum AC Power Supply |
| 電池 | ||
| A22E |
81Y4508 81Y4588 |
ServeRAID M5100 Series Battery Kit for IBM System x |
| 光驅 | ||
| 4161 | 44W3251 | IBM UltraSlim Enhanced SATA DVD-ROM |
| 4163 |
44W3253 46M0902 |
IBM UltraSlim Enhanced SATA Multi-Burner |
| 線纜 | ||
| A2F9 | 90Y3809 | 1m Mellanox QSFP Passive Copper InfiniBand Cable |
| A2FA | 90Y3813 | 3m Mellanox QSFP Passive Copper InfiniBand Cable |
| A2FB | 90Y3817 | 5m Mellanox QSFP Passive Copper InfiniBand Cable |
| A2FC | 90Y3821 | 10m Mellanox QSFP Optical InfiniBand Cable |
| A2FD | 90Y3825 | 15m Mellanox QSFP Optical InfiniBand Cable |
| A2FE | 90Y3829 | 20m Mellanox QSFP Optical InfiniBand Cable |
| A2FG | 90Y3837 | 30m Mellanox QSFP Optical InfiniBand Cable |
| A2FS | 95Y3462 | 3m Mellanox QSFP Optical InfiniBand Cable |
| A2FT | 95Y3466 | 5m Mellanox QSFP Optical InfiniBand Cable |
| 其它 | ||
| 64 |
49Y4219 49Y4218 |
QLogic 10Gb SFP+ SR Optical Transceiver |
| 3756 |
39Y7960 39M2895 |
IBM USB Conversion Option Pack |
| 3757 |
39Y8072 43V6147 |
IBM Single Cable USB Conversion Option (UCO) |
| 3758 |
39Y7957 39M2894 |
Virtual Media Conversion Option |
| 5340 |
69Y2045 46M5382 |
IBM Serial Conversion Option (SCO) |
| 5341 |
69Y2046 46M5383 |
IBM Virtual Media Conversion Option Gen2 (VCO2) |
| A1ML | 80Y9626 | IBM Integrated Management Module |
| A1X1 |
81Y4542 90Y4311 |
ServeRAID M1100 Series Zero Cache/RAID 5 Upgrade for IBM System x |
| A1X2 |
81Y4544 81Y4545 |
ServeRAID M5100 Series Zero Cache/RAID 5 Upgrade for IBM System x |
| A1X3 |
81Y4546 81Y4547 |
ServeRAID M5100 Series RAID 6 Upgrade for IBM System x |
| A228 | 90Y6458 | IBM System x Gen-III Slides Kit |
| A229 | 90Y6461 | IBM System x Gen-III CMA |
| A22B | 90Y6465 | IBM System x Universal Slides Kit |
| A2VC |
94Y9770 41Y8300 |
IBM USB Memory Key for VMWare ESXi 5.0 |
