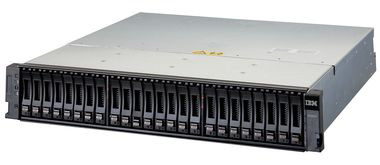

IBM DS3524
| 整機信息 | |
| 名稱 | IBM System Storage DS3524 Express Storage System |
| 型號 | 1746-A4D/1746-A4S |
| 機架空間 | 2U |
| 控制器信息 | 雙控制器 |
| 整機控制器緩存 | 每個控制器1GB緩存，可選升級為2GB緩存。 |
| 控制器是否有電池 | 是 |
| 接口 | 四個或八個 6 Gbps SAS 接口，或八個 8 Gbps FC接口加四個 6 Gbps SAS 接口，或八個 1 Gbps iSCSI 接口加四個 6 Gbps SAS 接口，或四個 10 Gbps iSCSI 接口加四個 6 Gbps SAS 接口。 |
| 硬盤插槽數量 | 24 |
| 支持的硬盤 | |
| 支持Raid類型 | 0, 1, 3, 5, 6, 10 |
| 發布日期 | 2009/1/4 |
| 下架日期 | |
| 存儲分區 | 4到128個存儲分區 |
| 可用性 | 熱插拔的雙電源 |
| SAN支持 | Supported IBM Fibre Channel switches and directors, and IP switches |
| 其他特性 | |
| 產品尺寸 | 3.4 英尺. 高 x 17.6 英尺. 深度 x 21.6 英尺.寬 |
| 產品重量 | |
| 管理軟件 | IBM System Storage DS Storage Manager |
| 存儲擴展柜 | EXP3512, EXP3524 |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| 緩存 | ||
| 3630 |
68Y8434 69Y2843 |
2GB Cache Upgrade |
| 硬盤 | ||
| 5205 | 49Y1841 | 146GB 15,000 rpm 6Gb SAS 2.5” HDD |
| 5206 | 81Y9891 | 300GB 15,000 rpm 6Gb SAS 2.5” HDD |
| 5210 | 49Y1836 | 300GB 10,000 rpm 6Gb SAS 2.5” HDD |
| 5220 | 49Y2048 | 600GB 10,000 rpm 6Gb SAS 2.5” HDD |
| 5225 | 81Y9915 | 900GB 10,000 rpm 6Gb SAS 2.5” HDD |
| 5250 | 49Y1952 | 300GB 10,000 rpm 6Gb SAS SED 2.5” HDD |
| 5265 | 49Y1851 | 500GB 7,200 rpm 6Gb SAS NL 2.5” HDD |
| 5270 | 81Y9872 | 1TB 7,200 rpm 6Gb SAS NL 2.5” HDD |
| 5500 | 81Y9903 | 200GB 2.5" SAS SSD |
| 5505 | 81Y9907 | 400GB 2.5" SAS SSD |
| 適配卡 | ||
| 3610 |
68Y8431 69Y2840 |
6Gb SAS 2 Port Daughter Card |
| 3611 |
68Y8432 69Y2841 |
8Gb FC 4 Port Daughter Card |
| 3612 |
68Y8433 69Y2842 |
1Gb iSCSI 4 Port Daughter Card |
| 3613 |
81Y9613 81Y9943 |
10Gb iSCSI 2 Port Daughter Card |
| 電源 | ||
| 69Y0201 | Power supply, AC | |
| 90Y8512 | Power supply, dc (models C4T and E4T) | |
| 電池 | ||
| 69Y2926 | Backup battery module | |
| 導軌 | ||
| 39R6550 | 2U rail kit | |
| 許可協議 | ||
| 3901 | 49Y5954 | Enhanced FlashCopy Base (up to 256 FlashCopies) |
| 3902 | 49Y5955 | Enhanced FlashCopy Upgrade (256 to 512) |
| 3903 | 49Y6059 | Enhanced FlashCopy plus Volume Copy (512 FCs, 256 VCs) |
| 4300 | 68Y8436 | 4 to 8 Partition Upgrade |
| 4301 | 68Y8437 | 4 to 16 Partition Upgrade |
| 4302 | 68Y8438 | 4 to 32 Partition Upgrade |
| 4304 | 68Y8439 | 4 to 64 Partition Upgrade |
| 4305 | 68Y8440 | 4 to 128 Partition Upgrade |
| 4310 | 68Y8441 | 8 to 16 Partition Upgrade |
| 4311 | 68Y8442 | 8 to 32 Partition Upgrade |
| 4312 | 68Y8443 | 8 to 64 Partition Upgrade |
| 4313 | 68Y8444 | 8 to 128 Partition Upgrade |
| 4320 | 68Y8445 | 16 to 32 Partition Upgrade |
| 4321 | 68Y8446 | 16 to 64 Partition Upgrade |
| 4322 | 68Y8447 | 16 to 128 Partition Upgrade |
| 4330 | 68Y8448 | 32 to 64 Partition Upgrade |
| 4331 | 68Y8449 | 32 to 128 Partition Upgrade |
| 4340 | 68Y8450 | 64 to 128 Partition Upgrade |
| 4400 | 69Y2871 | Turbo Performance |
| 4410 | 68Y8490 | Full Disk Encryption (FDE) |
| 4420 | 68Y8451 | FlashCopy: Base |
| 4421 | 68Y8452 | FlashCopy: Upgrade to 8 per volume / 64 per system |
| 4430 | 68Y8453 | Volume Copy: Base |
| 4440 | 68Y8454 | FlashCopy Base / Volume Copy Base |
| 4450 | 68Y8455 | Remote Mirroring: Base |
| 4451 | 81Y9622 | Remote Mirroring: Upgrade |
| 4700 | 68Y8458 | AIX/VIOS Host Kit |
| 4710 | 68Y8459 | Linux on Power Host Kit |
| 4720 | 68Y8461 | HP-UX Host Kit |
| 4730 | 94Y8434 | Mac OS Host Kit |
| 控制器 | ||
| 68Y8481 | Controller with 1 GB DIMM, no host port expansion adapter | |
| 3600 | 68Y8479 | Second Controller |
| 光纖模塊 | ||
| 3620 |
69Y2876 49Y4123 |
8Gb FC SW SFP Transceivers (Pair) |
| 線纜 | ||
| 13N1932 | Service cable | |
| 3707 | 39R6531 | 3m SAS Cable |
| 3708 | 39R6529 | 1m SAS Cable |
| 6313 | 69Y2909 | United States 10A line C13 to NEMA 5-15P (2.8M) |
| 其它 | ||
| 4390 | 81Y9620 | 96 to 192 Drive Expansion |
