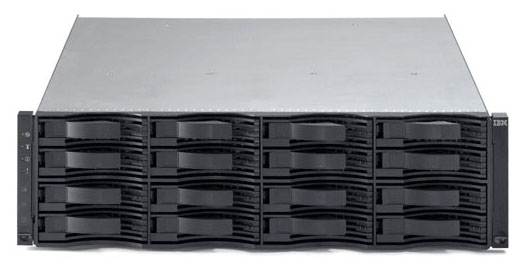

IBM DS6800 (1750-511)
| 整機信息 | |
| 名稱 | IBM System Storage DS6800 |
| 型號 | 1750-511 |
| 機架空間 | 3U |
| 控制器信息 | 雙控制器 |
| 整機控制器緩存 | 每個控制器2GB高速緩存；每個系統4GB高速緩存。 |
| 控制器是否有電池 | 是 |
| 接口 | 主機端口 8 ；2 Gbps光纖通道/FICON |
| 硬盤插槽數量 | 128 |
| 支持的硬盤 | 73GB (15K rpm)；146GB (10K rpm)；146GB (15K rpm)；300GB (10K rpm)。 |
| 支持Raid類型 | 5, 10 |
| 發布日期 | |
| 下架日期 | |
| 存儲分區 | |
| 可用性 | 容災，雙冗余和熱插拔RAIC控制器卡，電池備份設備，光纖通道交換機控制器，電源，無間斷硬件和軟件代碼加載更新，多路徑設備驅動器 |
| SAN支持 | 直接、FC-AL、交換結構。 |
| 其他特性 | |
| 產品尺寸 | 3U (5-1/4" high). |
| 產品重量 | |
| 管理軟件 | IBM DS6000 Storage Manager—no charge, included with system. |
| 存儲擴展柜 | 1750-EX1 |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| 硬盤 | ||
| 22R5945 | 146gb 15k fc drive | |
| 2002 | 22R2174 | 2Gb-146GB 10K rpm Drive Set (Withdrawn) |
| 2004 | 22R2175 | 2Gb-300GB 10K rpm Drive Set (Withdrawn) |
| 2052 | 22R2176 | 2Gb-73GB 15K rpm Drive Set (Withdrawn) |
| 2054 | 22R1062 | 2Gb-146GB 15K rpm Drive Set (Withdrawn) |
| 電源 | ||
|
22R5341 23R1033 17P9563 |
Power Supply | |
| 電池 | ||
|
23R0247 23R0651 |
Battery Backup Unit | |
| 許可協議 | ||
| 100 | Eligible for EU shipment | |
| 110 | AAP administrative Feature | |
| 5000 | 22R2425 | OEL-1TB |
| 5001 | 22R2426 | OEL-5TB |
| 5002 | 22R2427 | OEL-10TB |
| 5003 | 22R2428 | OEL-25TB |
| 5004 | 22R2429 | OEL-50TB |
| 5200 | 22R2435 | PTC-1TB |
| 5201 | 22R2436 | PTC-5TB |
| 5202 | 22R2437 | PTC-10TB |
| 5203 | 22R2438 | PTC-25TB |
| 5204 | 22R2439 | PTC-50TB |
| 5300 | 22R2440 | RMC-1TB |
| 5301 | 22R2441 | RMC-5TB |
| 5302 | 22R2442 | RMC-10TB |
| 5303 | 22R2443 | RMC-25TB |
| 5304 | 22R2444 | RMC-50TB |
| 5915 | FICON Attachment | |
| 控制器 | ||
|
22R6050 22R6154 22R4876 |
Controller for DS6800 | |
| 光纖模塊 | ||
| 1310 | 22R2177 | 2Gbps Fibre Channel Short Wave SFP Pair |
| 1315 | 22R2178 | 2Gbps Fibre Channel Long Wave SFP Pair |
| 線纜 | ||
| 1350 | 22R2179 | 2M 50Micron LC-LC cable (Withdrawn) |
| 1351 | 22R2180 | 7M 50Micron LC-LC cable (Withdrawn) |
| 1352 | 22R2181 | 31M 50Micron LC-LC cable (Withdrawn) |
| 其它 | ||
| 930 | IBM/Openwave Alliance/ Global mirror indicator | |
| 946 | Vmware | |
| 947 | Other OS | |
| 948 | IBM System z Linux System | |
| 1201 | Modem Country Group M01(Withdrawn) | |
| 1202 | Modem Country Group M02(Withdrawn) | |
| 1203 | Modem Country Group MO3(Withdrawn) | |
| 1204 | Modem Country Group M04(Withdrawn) | |
| 1205 | Modem Country Group M05(Withdrawn) | |
| 1370 | 22R2185 | 50micron LC-SC Fibre Channel Interposer (Wit |
| 1371 | 22R2186 | 9micron LC-SC Fibre Channel Interposer (With |
| 9009 | English Translation Materials/Attaching to the FAstT900(1742-90U)(Withdrawn)/Field attach to DS4500(M/T 1742) | |
| 9010 | Japanese Translation Materials |
